Mega V 2

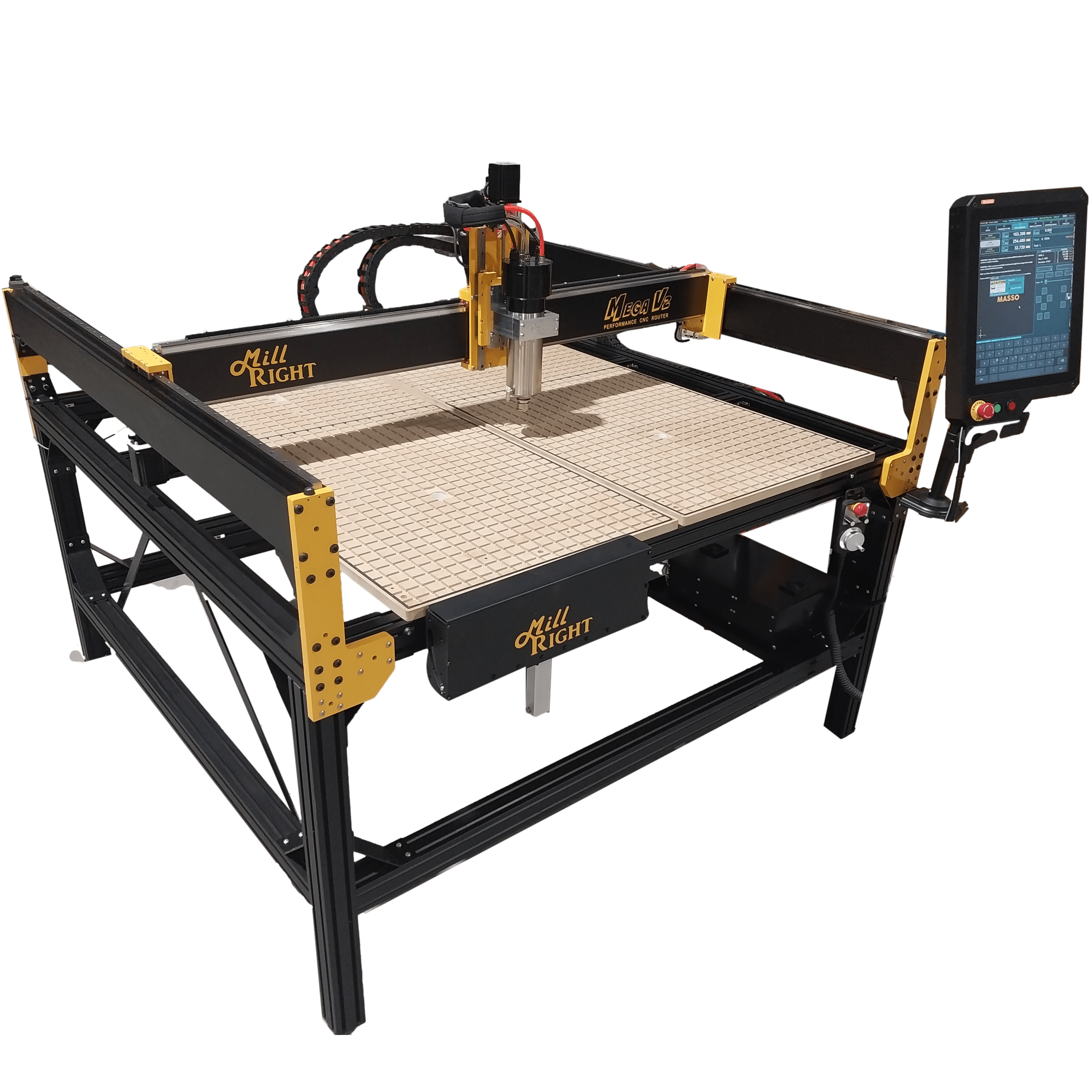

Description The Mega V 2 is the latest evolution of performance CNC routers from MillRight CNC. Whether you need a desktop CNC machine for your hobby or a standalone CNC router table for production, the Mega V 2 has you covered. Since the launch of the original Mega V in 2019, we’ve collected feedback from thousands of Mega V owners and have engineered features to take your CNC experience to the next level. Engrave, cut, flatten, or carve almost anything you can imagine with the Mega V 2. The Mega V 2 continues the legacy of high speed steel rack and steel pinion power transmission on the X and Y axis with an improved Z axis screw drive. Improvements of the Mega V 2 include: Linear profile rails on every axis Improved subframe for extra rigidity and easy squaring Thicker joining plates for class leading rigidity Taller Z height with over 5 inches of gantry clearance on the 19 and XL model and 5.75″ on the XXL, with both having 6 inches of Z stroke Self-squaring gantry via independently driven Y motors and dual homing switches Homing switches come standard with precision switch mounts for easy switch positioning via machined registration points Upgraded switch and signal cable wiring Z axis coupler is now pinned to the drive screw to eliminate the possibility of slippage between the motor and drive screw Upgraded cable chain mounts Pinion gear guarding for enhanced safety Enhanced adjustment of Y axis motors with inclined plane mounts Improved build instructions with exploded views Leveling feet on every machine Optional Masso G3 Touch Control system Options for 120V spindle package or mounts for either Makita RT0701C or DeWalt DW618 routers (routers not offered, only the router mount) Option for a 220V Automatic Tool Changer with 8 Tool Position Automatic Tool Trolley (at least 5 CFM of dry air at 95PSI is required). Note that the entire system will be 220V single phase if the ATC option is selected. Comes with four ISO 20 tool holders. Optional stand with steel braces on the Mega V 2 XL. The stand comes standard on the XXL size. Options for beds ranging from basic beds with inserts, T Plate Aluminum, and Vacuum Plenum Beds Optional 4th axis capable of chucking up to 2.75″ stock with lengths the extent of machine travel via the independent tail chuck Important note on voltages: Machines using 2.2kW spindles are 220V only, using a NEMA 6-20 plug. Machines selecting “I’ll provide my own”, a Makita router mount, a DW618 router mount, or 1.5kW spindle will be sent as a 120V machine with a standard American household plug. SEE THE TAB LABELLED “PRODUCT OPTIONS” ABOVE FOR A DETAILED EXPLANATION OF THE DIFFERENT OPTIONS. Please note that due to the variety of options, the picture that shows may not be representative of the exact configuration you have selected. Please contact us at [email protected] or 229-759-7520 with any questions you may have. We want you to receive exactly the product you expect. Assembly is required on these machines. Instruction booklets are provided. LEAD TIMES AS OF 04/23/2025: THE LONGEST LEAD TIME DICTACTED BY YOUR OPTIONS WILL APPLY. THE CARD IS CHARGED AT TIME OF ORDER. Standard size (19″) or XL size (35″) with GRBL control: Ships within 3 business days XXL size (50″) with GRBL control: Ships within 6 business days Any size (standard through XXL) machine with a Masso Control: Ships within 6 business days Any size (standard through XXL) machine with a 2.2Kw ATC or Manual Quick Change Spindle: Ships within 3 weeks.
