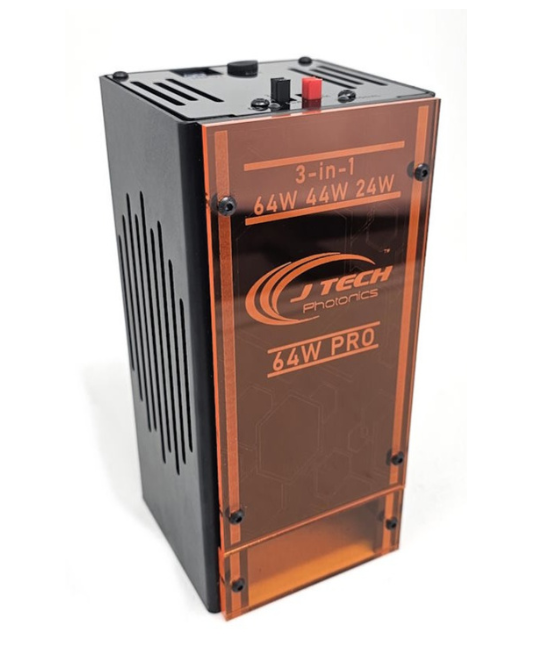

Description Introducing the highest power diode laser available for upgrading your CNC machine. An amazing 64W of optical output can expand your creativity when completing your projects. Turn your CNC into a large format laser cutter! With the combination of twelve 7W lasers, this laser output is similar to a standalone CO2 laser, but you get the versatility and size of mounting it to your own CNC machine. The new 3-in-1 laser gives the powerful cutting ability of a 64W laser, the mid-level power of a 44W laser, and the fine detail of a 24W laser. Tune your projects for whichever power level you want. Made in the U.S.A. with JTech designed and manufactured electronics All JTech products are designed, engineered, and manufactured in America with JTech’s own circuit board manufacturing line. 12 Lasers combined to give the highest power offered for a CNC upgrade JTech has combined 12 7W lasers to get 64W of pure optical power for maximum cutting efficiency. There’s no need to get a standalone CO2 laser when you can have a large table for a fraction of the price of a large format machine. Product Features Incredible 64W Maximum Optical Power, the highest powered laser of its kind on the market Integrated electronics—no power loss on extended cable runs Advanced Tilt Sensor Technology™—laser will only fire when pointed down at the material for extra safety FDA compliant interface module for extra safety with power on reset and locking key switch Optically isolated inputs for industrial control Red crosshair laser for finding your project zero position Full metal enclosure with integrated JTech safety shielding Full metal mounts with magnetic latching and the ability to lock in place Integrated Air Assist nozzle Maximized cooling with dual fans Adjustable sliding shroud for 3D engravings Three lasers in one! This new laser has the ability to switch between 64W, 44W, and the super fine detail of 24W mode. If your project needs less power for engraving, switch to the lower power modes, which allow you to engrave photos with ease and fine detail. Integrated Red Crosshair Alignment Laser The 64W laser comes with an integrated red crosshair laser for alignment of your work to the laser beam. Simply turn the red laser on when zeroing your project, place your material and move to your zero, then jog the machine the offset to align the engraving laser to your zero. The easy-to-use switch on the top makes it incredibly easy to find your zero location. Similar power to a CO2 laser With 12 combined diodes, this laser produces similar power levels as entry-level standalone CO2 laser machines. For a fraction of the price, you can have similar cutting ability on your large format CNC. You’ll be saving money and space in your shop. Cut more, cut faster The incredible power of 12 lasers combined gives excellent cutting ability for a variety of materials. Cut through 1/4″ plywood with ease. Integrated Air Assist The Air Assist improves cutting and engraving and is integrated into the laser with easy press connect fittings which makes it easier to route your air hose to your cable chain on your CNC. It is recommended to always use the air assist when using the laser. The integrated air assist is a huge advantage for this laser. *Pump not included. 50W Aquarium Pump for Cutting Integrated Electronics and Safety Interface Board The main control board to manage 12 separate laser diodes is integrated into the laser housing. This maximizes the current to the diodes for full performance without any line losses. The integrated board does the heavy work while the safety interface board does all of the industrial input optical isolation, power conditioning, and safety. More power, more safety The laser safety board includes a locking key switch, power on reset protection, remote interlock ability, and emission indication. The laser head has a patent pending Tilt Sensor Technology™ integrated into the electronics to only allow the laser to fire when positioned facing downwards towards the work surface. If it accidentally gets knocked off the mount or is not on the mount, the laser shuts off and will not fire. Full Metal Mounts with Latching = Stability All of the CNC bundles with the 44W laser include metal magnetic mounts for more stability. This laser is a beast, and more power means a heavier laser. The locking screws lock into the mount and the magnets hold it in place for a tight fit. If you want to have your laser attached to the mount even more, you can tighten the screws to make it so you can’t remove it. What this kit includes: The standard kit comes with: 64W PRO 3-in-1 laser head with metal magnetic shroud Laser safety interface board Power Adapter 24V, 10 amp Laser Safety Goggles for 445nm Laser Laser Focus Tool Air Assist Nozzle and air hose (pump not included) Specifications Laser Head Maximum Laser Optical Power >64W Laser Spot 64W 0.15 x 0.25mm Laser Spot 44W 0.15 x 0.18mm Laser Spot 24W 0.15 x 0.15mm Wavelength 455± 5nm Integrated Safety Feature Angle sensor, 45 degree Operating Temperature: 5 to 40 °C Storage Temperature: 1 to 45 °C Interface Board Protection: Soft Start, Reverse Voltage, Current Limit, Thermal Shutdown Integrated Safety Features Laser Enable Key Switch, Integrated Laser Interlock, Power off Reset, LED Indicators AC Adapter Input Voltage: 100 – 240 VAC Control Signal Digital Isolation Voltage: 4500 Vrms Minimum Control Signal ”Turn On” Voltage: 2.8 Volts Control Signal Maximum Voltage: 24Volts Control Signal Maximum Current: 50 ma Control Signal Maximum Frequency: 2.5KHz Connectors: Screw Terminal and Molex Mini-Fit Jr™ Connectors Operating Temperature: 0 to 40 °C Storage Temperature: -40 to 70 °C
