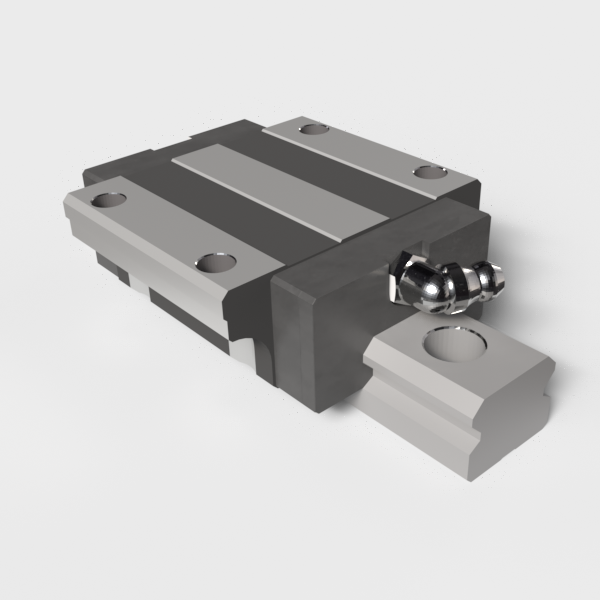

Linear Guide MSB15E

Model No. Rail Dimension Weigth Width W1 Height H1 PitchP E Std. E min D x h x d Fastening Bolt L0 Max Rail Kg/m MSB15TE 15 12.5 60 20 5 7.5x5.3x4.5 M4 2000 1.2 MSB15E 15 12.5 60 20 5 7.5x5.3x4.5 M4 2000 1.2 MSB20TE 20 15 60 20 6 9.5x8.5x6 M5 4000 2 MSB20E 20 15 60 20 6 9.5x8.5x6 M5 4000 2 MSB25TE 23 18 60 20 7 11x9x7 M6 4000 3 MSB25E 23 18 60 20 7 11x9x7 M6 4000 3 MSB30TE 28 23 80 20 7 11x9x7 M6 4000 4.4 MSB30E 28 23 80 20 7 11x9x7 M6 4000 4.4 MSB35TE 34 27.5 80 20 8 14x12x9 M8 4000 6.2 MSB35E 34 27.5 80 20 8 14x12x9 M8 4000 6.2
