Anti Backlash Spring Loaded Nut- For ACME Lead Screw

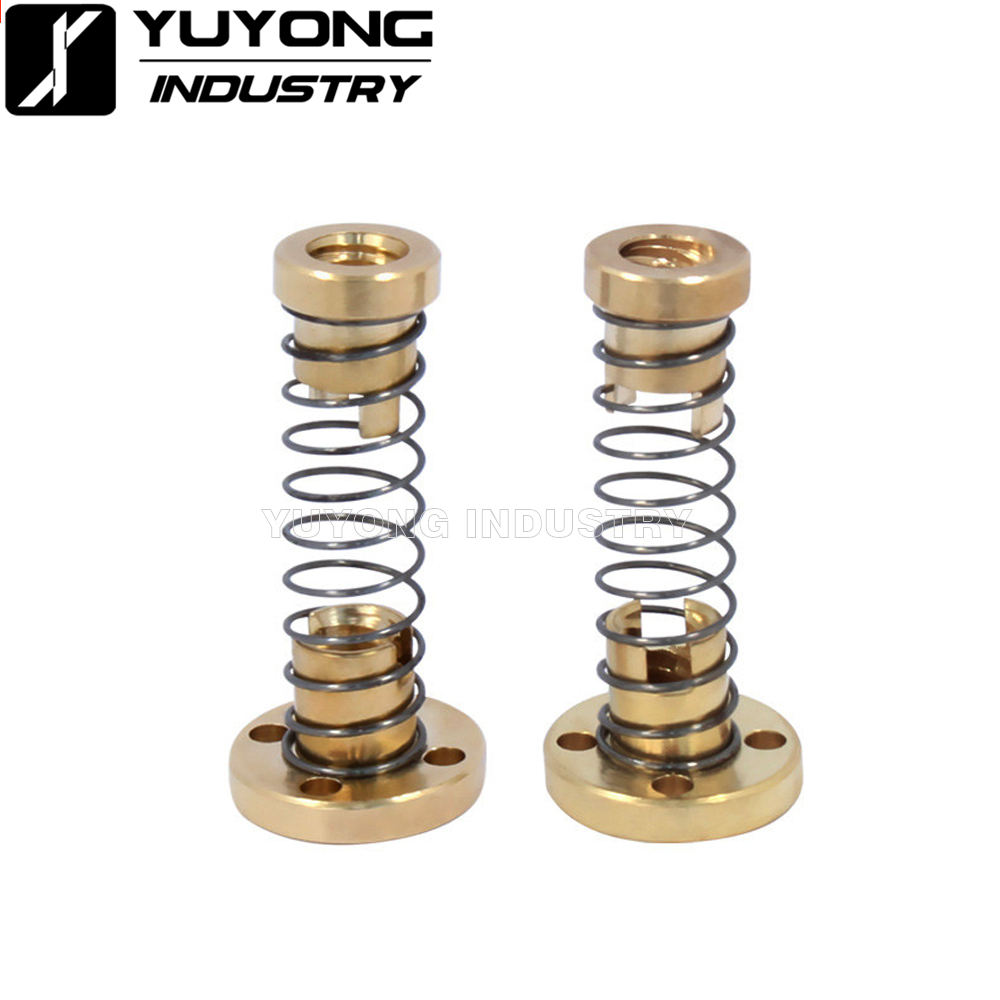

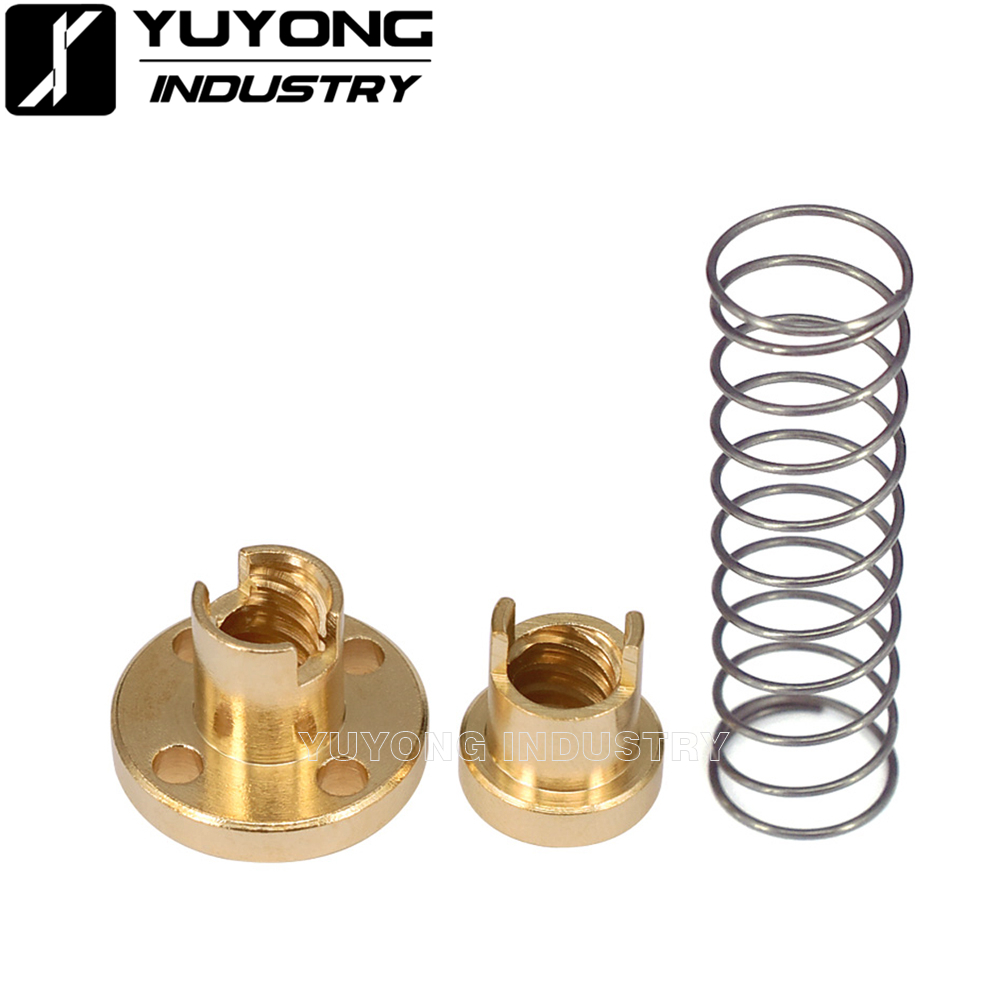

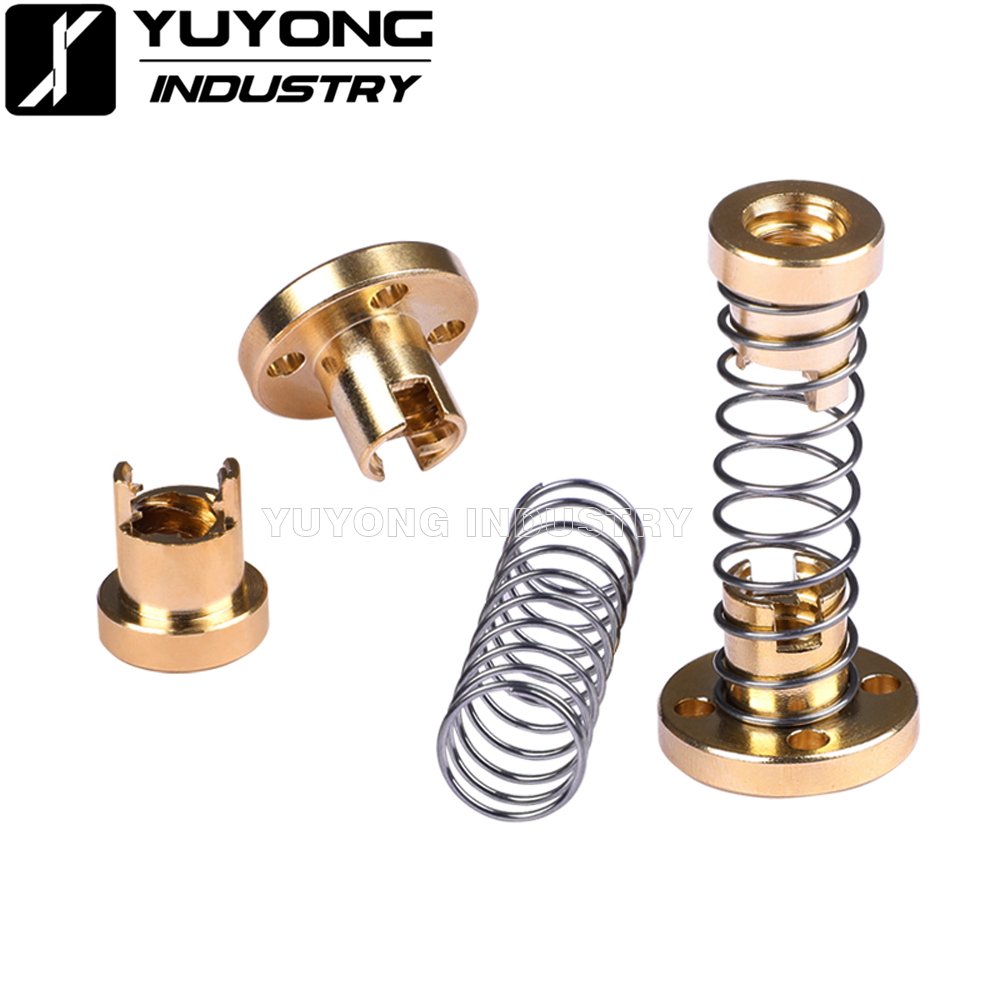

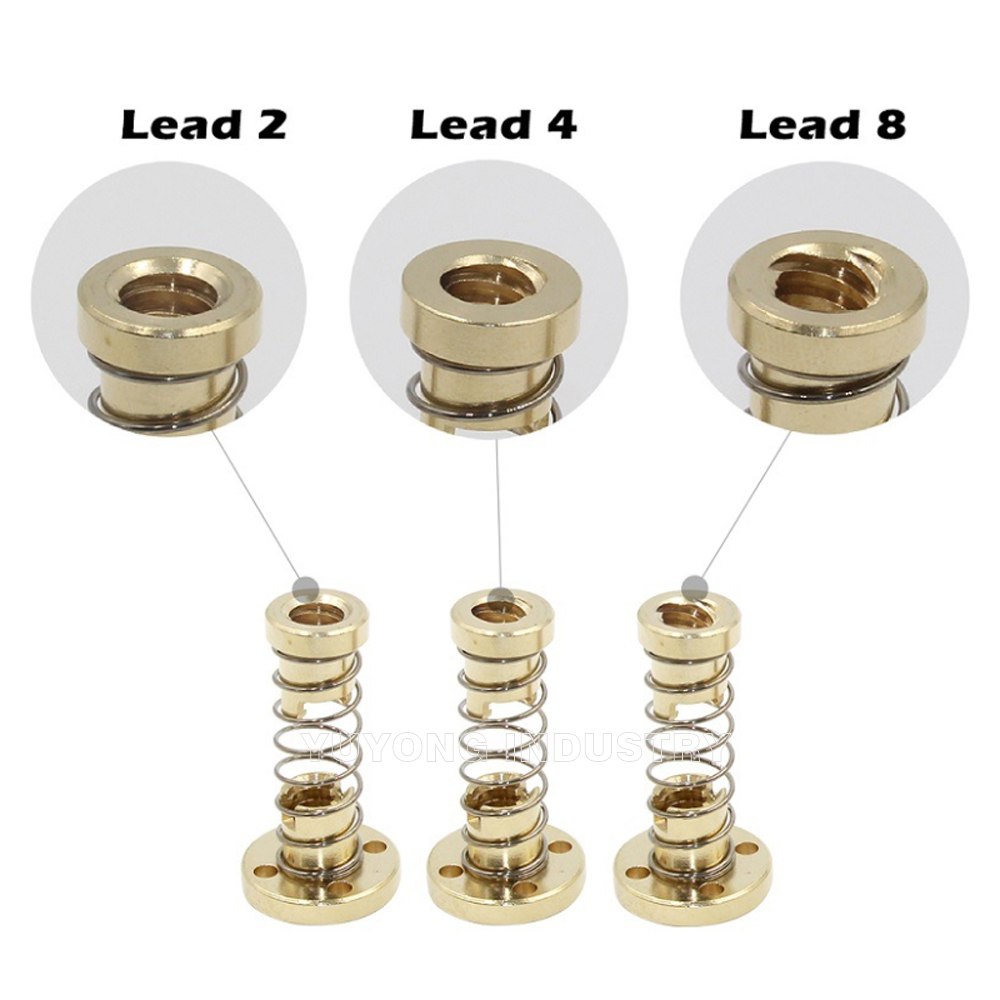

Description This Anti-Backlash Nut features a mounting flange with four un-tapped holes for M3 screws. It is intended for use with TR8×2/TR8x4/TR8x8(P2) leadscrews, which are 8mm-diameter rods with four independent trapezoidal threads spaced 2mm apart. One full revolution of such a rod will result in a 8.0mm linear displacement of the traveling nut. There are 2 brass threaded sections, one with a sleeve. The threaded sections are placed under pressure (to reduce backlash) by a spring. Specifications Model:TR8*2-T2/TR8*4-T2/TR8*8-T2 Material: Brass Color: Golden Size:TR8x2/TR8x4/TR8x8 Height: 2 mm Small Diameter: 16mm Large Diameter: 22mm Mounting Holes: 3mm Thread: 8mm Lead: 8mm Pitch: 2mm Starts: 1/2/4
