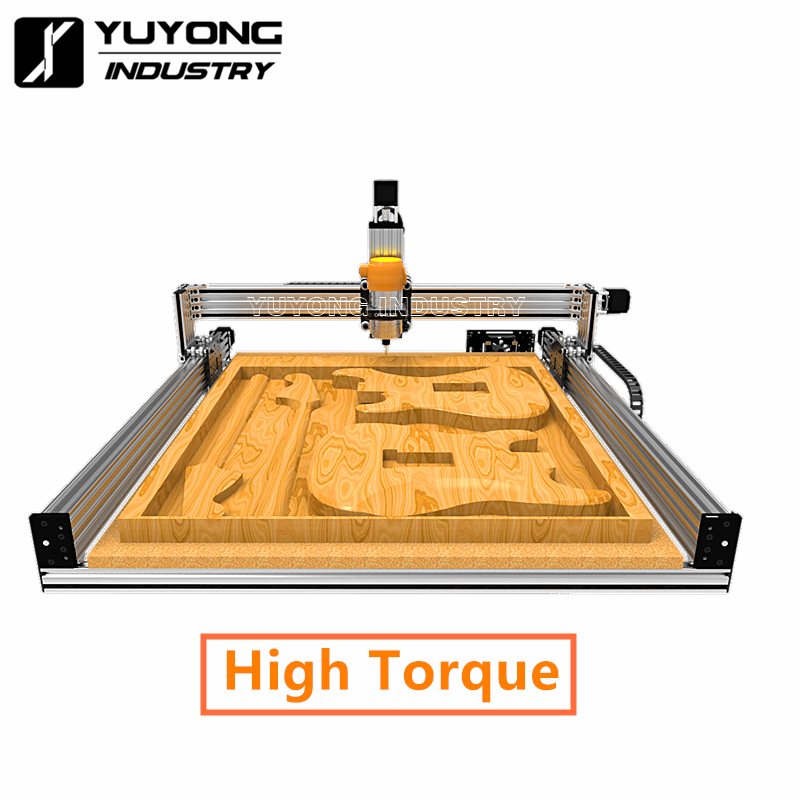

1515 Lead CNC Full Kit Lead CNC Router Machine Full kit Carving Engraving machine 1500mmx1500mm
$67.32
$110.4
Description 1515 Lead CNC Full Kit Lead CNC Router Machine Full kit Carving Engraving machine 1500mmx1500mm The Lead CNC Machine is the result of years of experience, feedback,and suggestions,and through rigorous beta testing and staying true to the modular nature of YuYong 3DMaker Linear Rail system. It has been designed from scratch, and can accurately cut foams, woods, plastics and aluminium to 0.05mm accuracy or better. The LEAD CNC has proven itself as a workhorse capable of not only cutting large/hard material cuts, but also having the ability to transform and grow into any configuration. OPEN SOURCE – The LEAD CNC machine is Open Source and the Builder community is encouraged to modify and build on this design. EASY TO BUILD – With the V-Slot Modular Framing System and Build-Along Video,assembly is quick and easy. AFFORDABLE – Budget friendly parts allow Builders the opportunity to freely create. CUSTOMIZATION – Take it to the next level and make it your own! All Aluminum Extrusions have been Thread Tapping M5,so you can assembly them directly when receive them. Compatible Material for Cutting/Milling: Aluminum Wood Hard/Soft Plexi Glass Delrin HDPE Foam The kits not including: MDF panel,Drill Bits If you have any idea or question,please feel free to contact us first,will support you in the first time. Package Includes: 1500mmx1500mm Lead CNC Mechanical and Wiring Kit with 4pcs High Torque Nema 23 Stepper Motors(2.5N.m) Controller Combo(Mach3 or GBRL for choice) 1.5KW/2.2KW Air Cooled Spindle Combo(110V or 220V is Available) or 1.5KW/2.2KW Water Cooled Spindle Combo(110V or 220V is Available) Drag Chain Combo For Controllers Choice,please Click Here Note: There have many Options for your choice. 110V or 220V Optional! e.g: Sliver-2.2KW-A： 1500x1500mm Sliver Screw Driven 2.2KW Spindle Combo Air-Cooled Black -2.2KW-W： 1500x1500mm Black Screw Driven 2.2KW Spindle Combo Water-Cooled PS:Please kindly leave a message for us to choose 110V or 220V.Thanks for your attention! The LEAD CNC Specs: Size 1500mmx1500mm: Specs of High Torque 2.5N.m Nema23 Stepper Motor: Nema 23 Size:57x57x83mm Phase Number:2 Phase Shaft Size: 8mm Step Angle: 1.8 Holding Turque: 2.5N.M(＞345Oz.in) Rated current: 3A Air Cooled 1.5KW/2.2KW Router Spindle: Size: φ80×210 mm /φ80×210 mm Power:1.5KW/2.2KW Collect:ER16/ER20 Voltage: 110V or 220V Current: 6A/8A Frequency: 400 Hz Speed:24000 rpm/min Cooling Type:Air-Cooled Runout off: less than 0.005mm Grease Lubrication Water Cooled 1.5KW/2.2KW Router Spindle: Size: φ80×210 mm /φ80×210 mm Power: 1.5KW/2.2KW Collect: ER16/Er20 Voltage: 110V or 220V Current: 5A/8A Frequency: 400 Hz Speed:24000 rpm/min Cooling Type:Water-Cooled Runout off: less than 0.005mm Grease Lubrication
