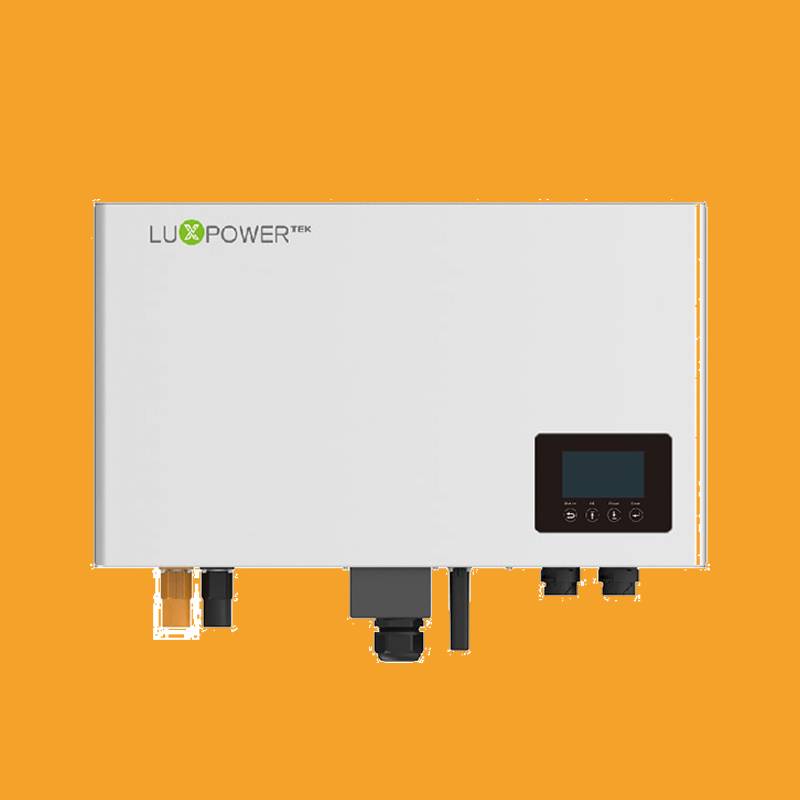

Lux Power Inverter ACS3600

BATTERY ACS 3.6K Compatible Battery Type Lithium-ion, Lead-Acid etc. Nominal Battery Voltage 48V.d.c Max. Charging Voltage(V) <=60 V(Configurable) Max. Charge/Discharge Current 70A / 70A Battery Capacity(Ah) 100Ah Charging Mode for Li-Ion Battery Self-adaption to BMS Charging for Lead-acid Battery 3-stage adaptive with maintenance Battery Back Feed Current 0A GRID ACS 3.6K Nominal AC Output Power to Utility 3600VA Max. AC Output Power to Utility 3600VA Max. AC Input Power from Utility 5980VA Max. AC Output Current to Utility 16A Max. AC Input Current From Utility 26A Nominal Output Voltage 220/230V.a.c AC Voltage Range 180 – 270V.a.c Nominal AC Frequency 50Hz/60Hz AC Over Current Protection 31A Power Factor 1(adjustable 0.8leading -0.8lagging) THDI <3% AC Over Voltage Category Category III UPS ACS 3.6K Max. Output Power 3600VA Nominal Output Voltage 230V.a.c Nominal Output Frequency 50Hz / 60Hz Max. Output Current 16A Peak Power 4500VA, 30s THDV(linear load) <3% Switching Time Typical 0.01s Back-up Over Current Protection 31A EFFCIENCY ACS 3.6K Max. Charge/Discharge Efficiency 96% PROTECTION ACS 3.6K Reverse Polarity Protection YES Over Current/Voltage Protection YES Anti-islanding Protection YES AC Short-circuit Protection YES Leakage Current Protection YES Ground Fault Monitoring YES Grid Monitoring YES Ingress Protection Degree IP65 / NEMA4X GENERAL DATA ACS 3.6K Dimension(mm) 650*440*220 Weight 15.6 kg Topology HF Cooling Concept Natural Convection Relatively Humidity 100% Altitude <2000m Noise Emission <25dB Standby Consumption <5W Display & Communication Interfaces LCD, LED, RS485, Wi-Fi, CAN
