T7Design Honda Water Outlet Plate - FWD (K20A, K20A2, K20A3, K20Z1 & K24A1)

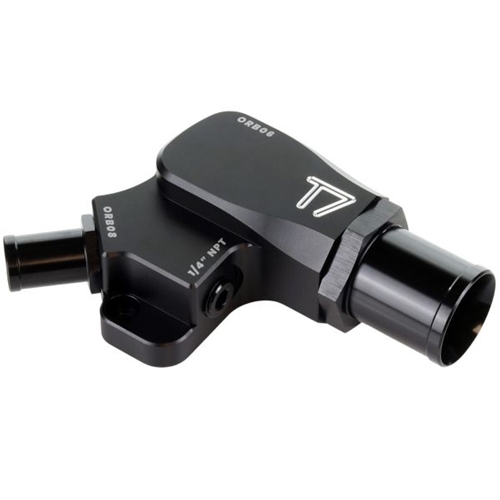

Honda K20/K24 Water Outlet Neck The T7Design K20/K24 Water Outlet Neck offers the end user more options for custom and race set ups over the original water neck. For example, we have included an ORB16 threaded outlet to allow the user to run either a 32mm hose adapter, or an AN16 fitting, the thermostat bypass outlet is an ORB08 and can be plugged if not required (for example electric water pump conversions). On the top there is an ORB06 to allow easy bleeding of the K20 engine, or it could be used to route an air bleed hose to a header tank. Underneath the top rad hose outlet we have a 1/4" NPT threaded hole for the installation of temperature sensors such as those used in Davies Craig EWP kits, or for an aftermarket gauge. FEATURES & BENEFITS   ORB16: For top radiator hose, OEM 32mm Hose barb or AN16 options available. ORB08: T-Stat bypass hose, ORB08 to Barb or ORB08 blanking plug available. ORB06: Air bleed, ORB06 blanking plug included. 1/4" NPT: For temp sensor, blanking plug included if not used. Fits the following engine models: K20A, K20A2, K20A3, K20Z1 & K24A1
